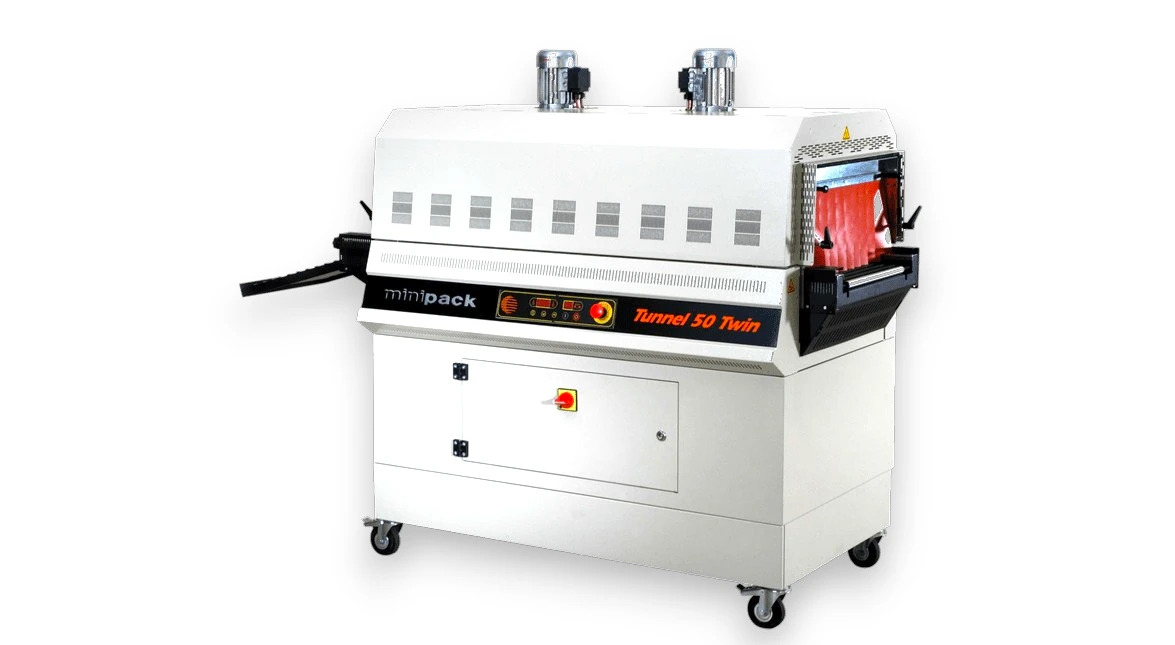

TUNNEL 50 twin

The electrical power supply specifications for the machine are versatile, accommodating multiple voltage configurations: 200V and 220V at 50/60Hz, 208V at 60Hz, and 400V at 50/60Hz. The maximum installed power varies, with 14.0 kW for 200V and 220V, 15.0 kW for 208V, and 14.5 kW for 400V, while the maximum current draws reach up to 43A for 208V and taper down to 21A for 400V. The machine itself measures 2130x800x1460 mm and weighs 260 kg net or 318 kg gross. It has a maximum product size of 400x190 mm, although this can be influenced by the product's shape, conveyor belt speed, and film type. The tunnel infeed dimensions are 450x210 mm, ensuring compatibility with a variety of products.
