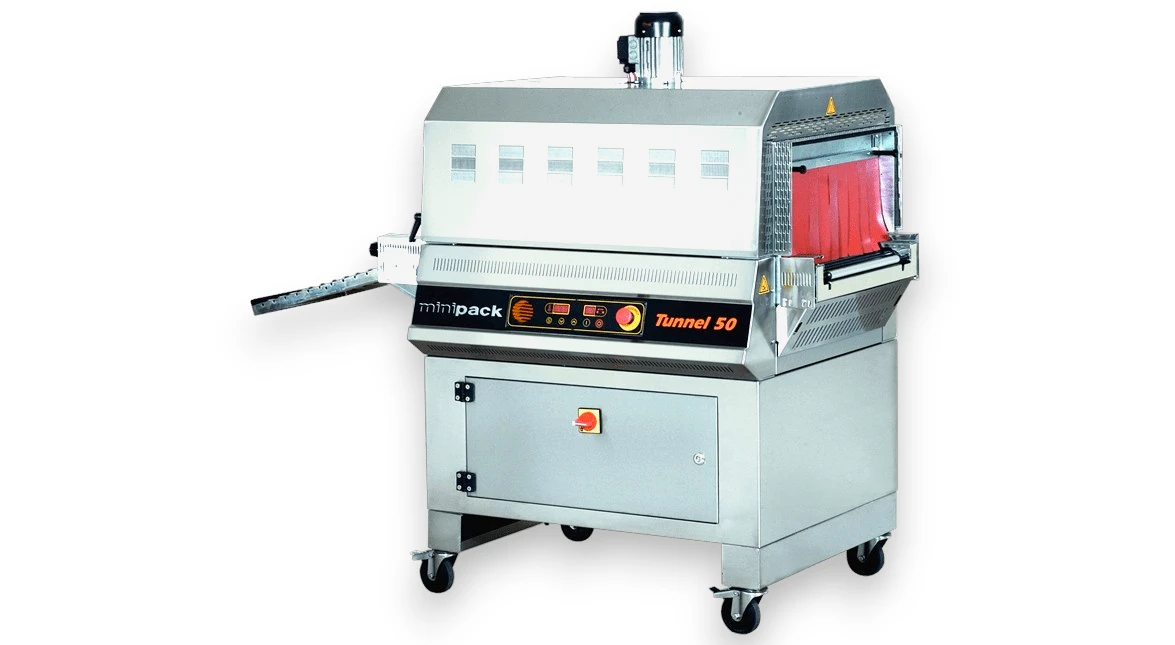

TUNNEL 50 DIGIT inox

Krymptunnel

115548.00kr

The electrical power supply specifications for the machine include various voltage options: 200V at 50/60Hz, 208V at 60Hz, 220V at 50/60Hz, and 400V at 50/60Hz, each operating on three phases. The maximum installed power varies by voltage, with 7.0 kW for 200V, 7.5 kW for 208V, and 7.2 kW for both 220V and 400V. The maximum current also differs, reaching up to 20A for 200V, 21A for 208V, 19A for 220V, and 11A for 400V. The machine can handle product sizes up to 400x220 mm, though the maximum length depends on factors such as shape, conveyor belt speed, and film type. The overall machine dimensions are 1770x840x1465 mm, and its net weight is 188 kg, with a gross weight of 236 kg. Tunnel infeed dimensions measure 450x240 mm.
