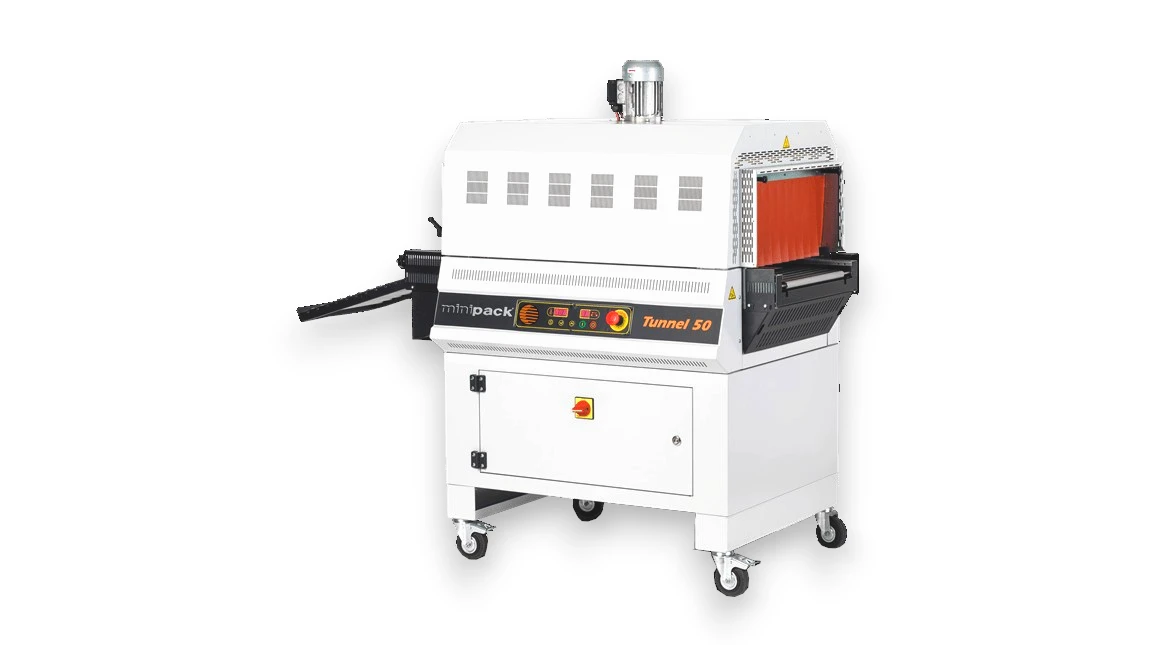

TUNNEL 50 DIGIT

The machine is designed to operate on various voltage and frequency configurations, including 208V at 60Hz, 220V at 50/60Hz, and 400V at 50/60Hz, accommodating diverse industrial standards. It has a maximum installed power of 7.0 kW for 200V, 7.5 kW for 208V, 7.2 kW for both 220V and 400V, ensuring versatility in power requirements. The maximum current draw varies, with 20A for 200V, 21A for 208V, 19A for 220V, and 11A for 400V. The machine can process products up to a size of 400x220 mm, with the actual length depending on factors such as the shape and conveyor belt speed. Its dimensions are 1770x840x1465 mm, and it weighs 188 kg net and 236 kg gross. The tunnel infeed dimensions are 450x240 mm, facilitating efficient material handling.
