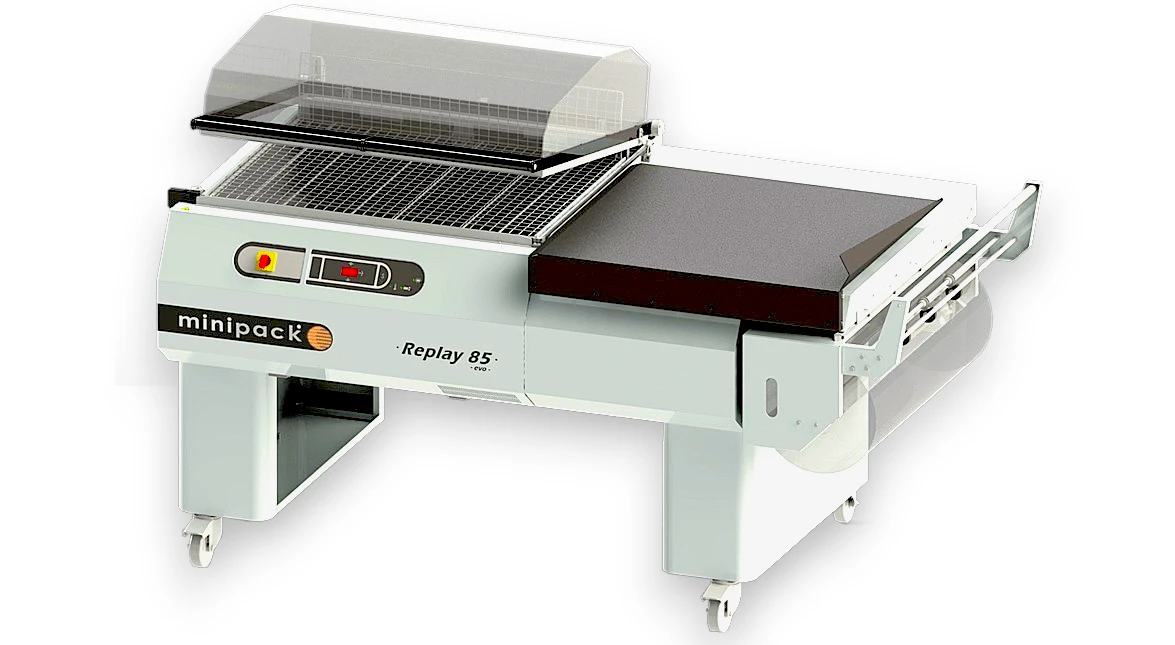

Replay 85 evo

This electrical power supply operates at various specifications, providing versatility for industrial applications. With options of 200V at 50/60 Hz, 208V at 60 Hz, and 400V at 50/60 Hz, it supports three-phase connections. The maximum installed power is rated at 5.5 kW for 200V, 6.6 kW for 208V, and 6.0 kW for 400V, ensuring efficient energy utilization. The maximum currents are 21 A for the 200V system, 20 A for the 208V version, and 9.5 A for the 400V option. The sealing bars can accommodate dimensions of 840x590 mm, while the maximum reel size reaches Ø300x800 mm. With a work surface height of 940 mm, the machine's overall dimensions are 1950x1000x1480 mm when the hood is open, and 1950x1000x1180 mm when closed, weighing between 212 kg net and 264 kg gross.
