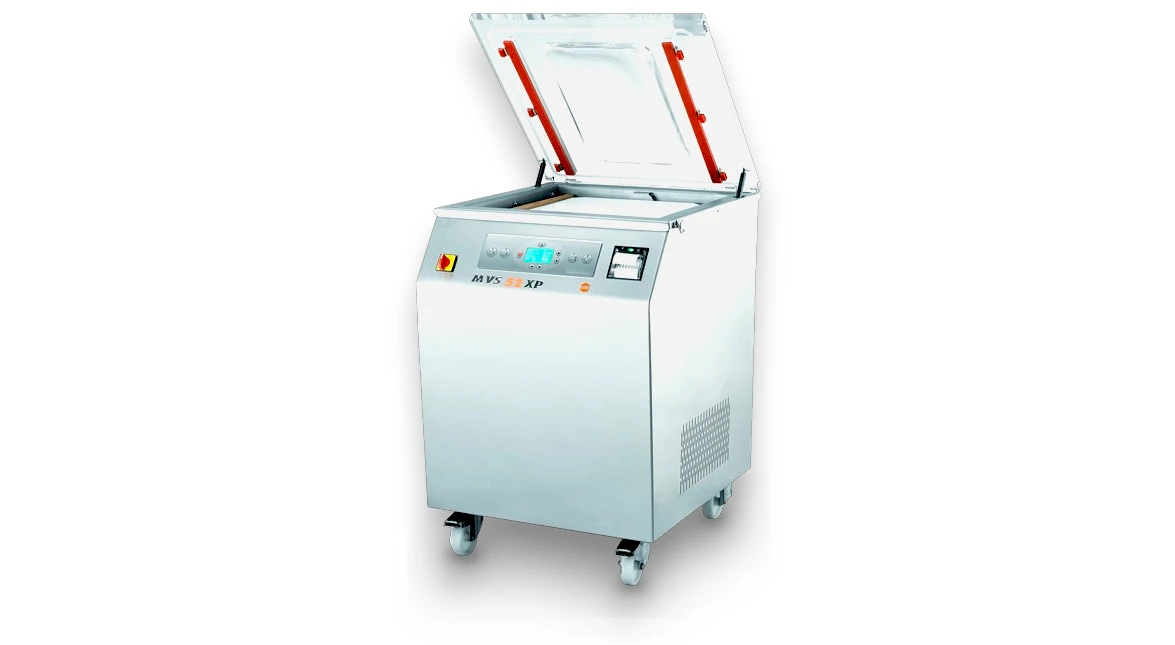

MVS52XP

The electrical power supply for this machine operates on two configurations: 220V at 60Hz for single phase (1ph) and 400V at 50Hz for three phase (3ph). It has a maximum installed power of 3.6 kW for the 220V configuration and 3 kW for the 400V setup, with maximum current ratings of 16 A and 7 A respectively. The sealing bars measure 530 mm, with two side bars per tank, totaling four. The machine features an efficient packaging cycle, achieving a vacuum of 99.9% in just 22 seconds, followed by a 5-second air re-immission period, supported by a vacuum pump with a capacity of 40 m³/h. The work surface height is set at 893 mm, and the machine dimensions are 1278x784x1344 mm when the lid is open and 1278x784x985 mm when closed, with a net weight of 268 kg and a gross weight of 300 kg. The available chamber dimensions accommodate two tanks at 399x540x155 mm each.
