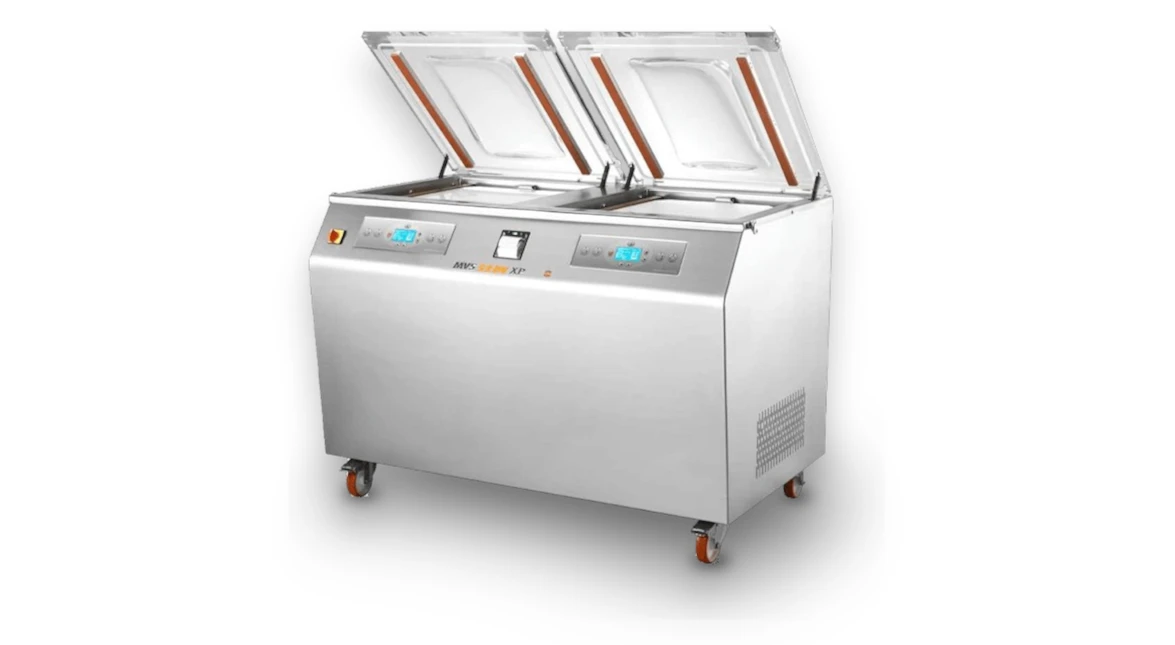

MVS52DV XP

The electrical power supply for the machine operates at two configurations: 220V at 60Hz for single-phase usage and 400V at 50Hz for three-phase systems. It has a maximum installed power of 3.6 kW for the 220V configuration and 3 kW for the 400V system. The maximum current draw is 16 A for single-phase and 7 A for three-phase operation. The sealing bars measure 530 mm, with two side bars per tank, totaling four bars. This machine features a vacuum packaging cycle that achieves a vacuum of 99.9% within 22 seconds, followed by a quick air re-introduction of 5 seconds. The vacuum pump operates at a capacity of 40 mc/h. The work surface height is 893 mm, with the machine dimensions being 1278x784x1344 mm when the lid is open, and 1278x784x985 mm when closed. The machine weighs between 268 kg (net) and 300 kg (gross), and it offers available chamber dimensions of 399x540x155 mm in two tanks.
