MVS50X

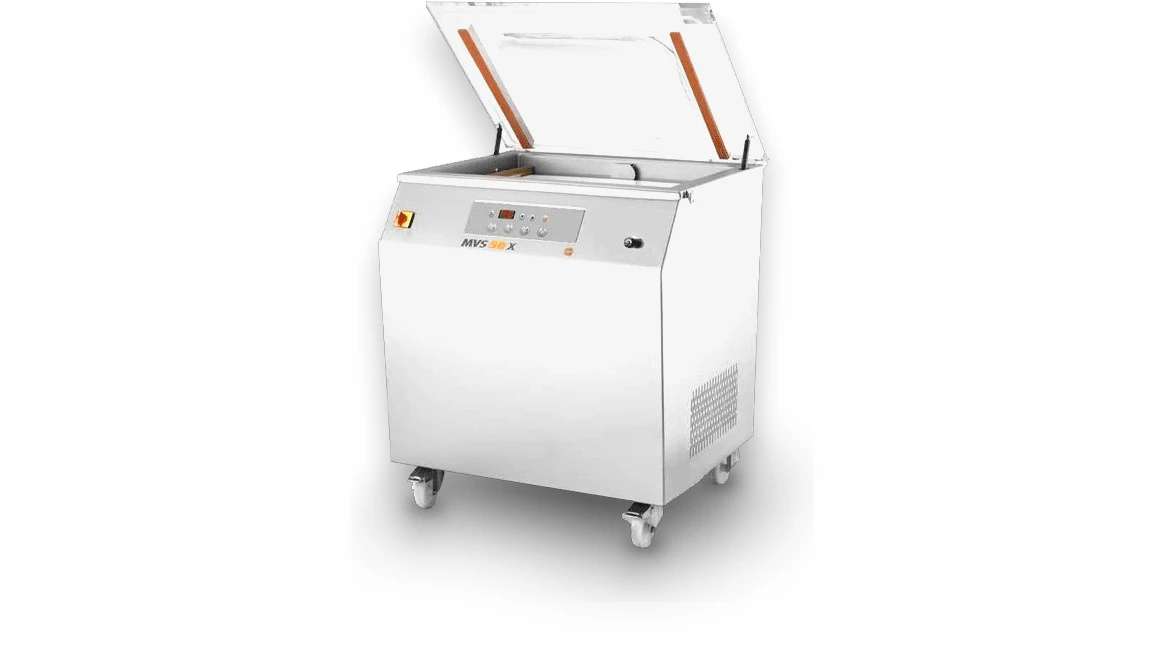

The MVS50 X is a highly efficient vacuum packaging machine equipped with two side bars and an electrical power supply capable of operating on various voltages, including 208V at 60Hz three-phase, 220V at 60Hz single-phase, and 400V at 50Hz. Its maximum power installations are rated at 3.6 kW, 3.8 kW, and 1.8 kW, respectively, with maximum currents of 14 A, 17 A, and 5 A. The sealing bars measure 510 mm each, providing efficient packaging with a vacuum efficiency of 9.9%, achieving vacuum in just 23 seconds and air re-immersion in 8 seconds. The vacuum pump capacity stands at 40 m³/h, and the work surface height is set at 889 mm. When the lid is open, the machine dimensions are 773x758x1313 mm, and when closed, it measures 773x758x1028 mm, with a total weight of 180 kg net and 205 kg gross. The chamber dimensions available are 562x518x241 mm.
