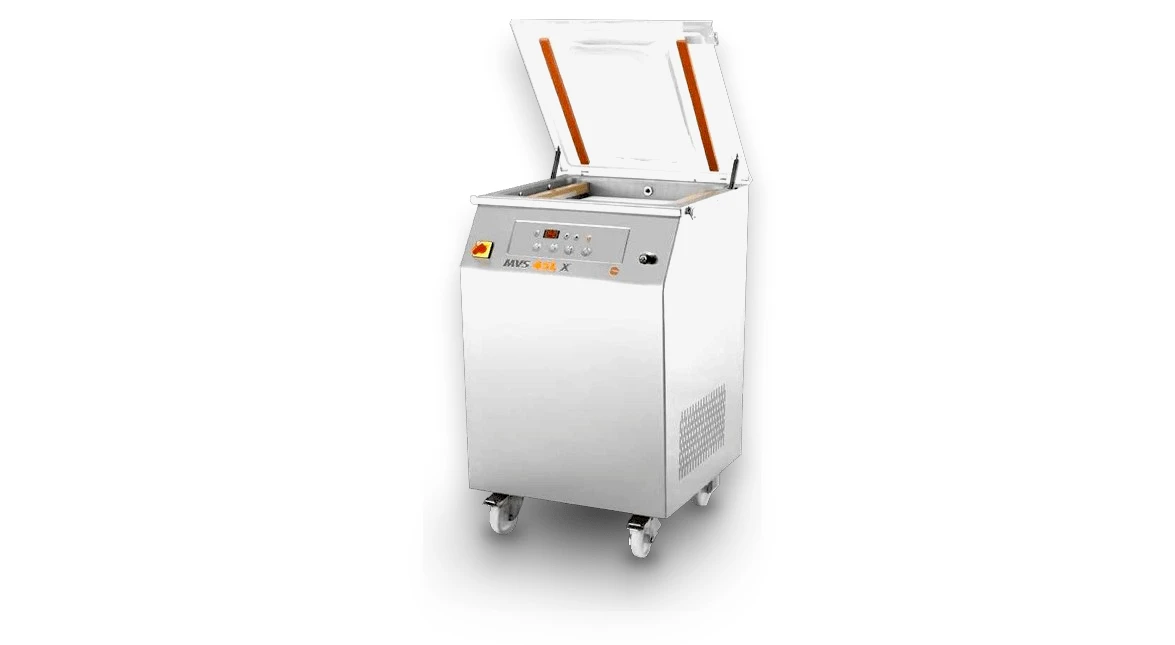

MVS45L X

The electrical power supply for this equipment operates at two different voltages: 120V at 60Hz and 230V at 50/60Hz, both with a single phase. The maximum power installed is 1.4 kW for the 120V configuration and 1.1 kW for the 230V setup, with a maximum current of 13A and 6A, respectively. The sealing bars measure 450 mm, allowing for effective packaging, which includes a vacuum cycle of 24 seconds and an air re-immission time of 8 seconds. With a work surface height of 889 mm, the machine has compact dimensions of 546x676x1200 mm when the lid is open and 546x676x1012 mm when closed. It has a net weight of 104 kg and a gross weight of 129 kg, with available chamber dimensions of 466x405.5x226 mm and 351x466x226 mm for versatility in packaging.
