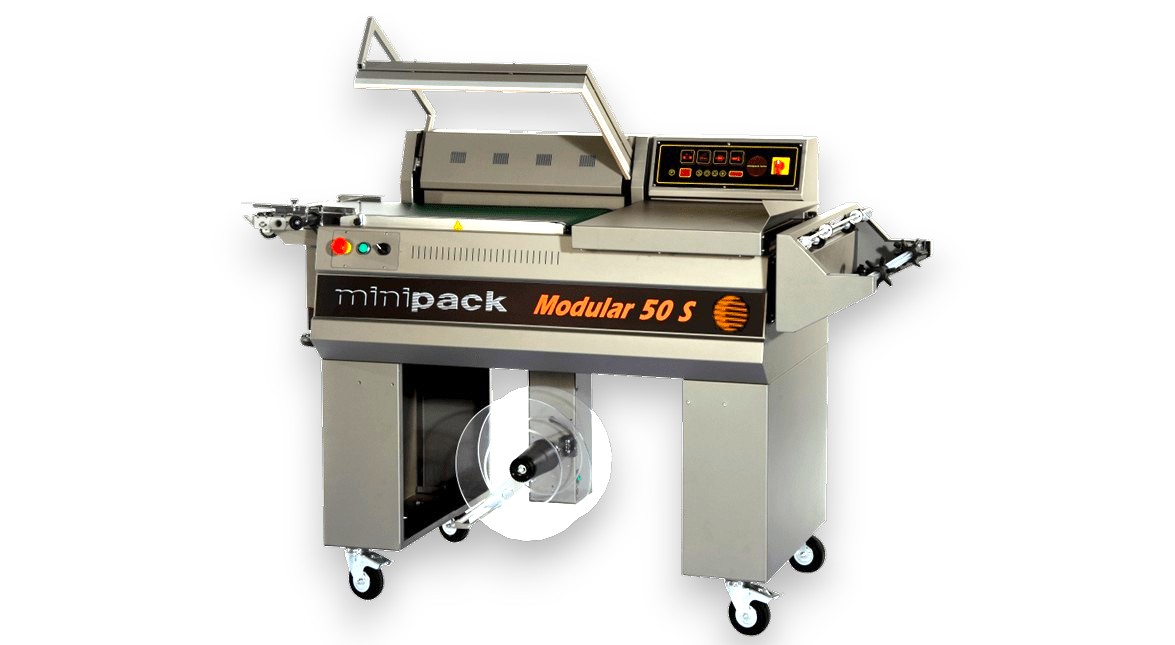

MODULAR 50s INOX

The electrical power supply for the machine operates on several voltage configurations, including 200V at 50/60Hz, 208/220V at 60Hz, 230V at 50Hz, and 400V at both 50 and 50/60Hz, with additional options at 440V for 50/60Hz. It utilizes a three-phase system and has a maximum installed power of 2.4 kW, producing an hourly output ranging from 0 to 900 products per hour. Current specifications vary by voltage, with a maximum of 12A for 200V and decreasing to 5.5A for 440V. The sealing bars measure 540x400 mm, accommodating reels with a maximum diameter of 250 mm and a strip width of 600 mm. The machine's work surface stands at a height of 930 mm, with a net weight of 151 kg and a gross weight of 182 kg. When the sealing frame is open, the machine dimensions are 1565x750 mm, with a height of 1400 mm.
