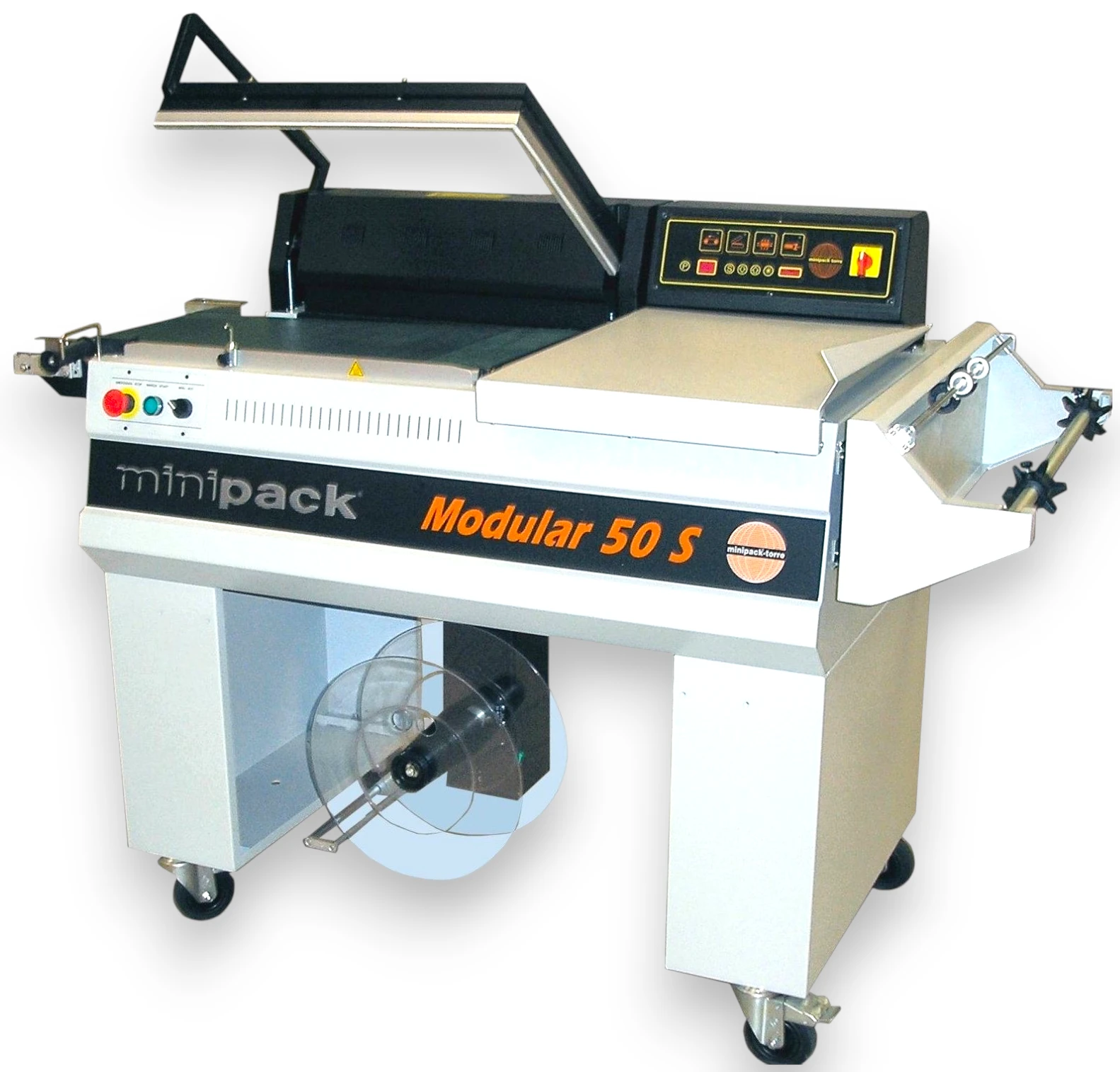

MODULAR 50s

The electrical power supply for this machine operates at multiple voltages, including 200, 208, 230, and 380 volts for three-phase systems, as well as 230 volts for single-phase use. It boasts a maximum installed power of 2.3 kW, ensuring efficient operation with an hourly output of 900 p/h. The sealing bars are available in dimensions of 540x400 mm, accommodating reels with a maximum diameter of 250 mm and strip widths up to 600 mm. The work surface stands at a height of 930 mm, while the machine weighs 151 kg net and 182 kg gross. When the sealing frame is open, the machine dimensions are 1565 mm by 750 mm and a height of 1400 mm. In its closed position, the dimensions reduce to 1565 mm by 750 mm and a height of 1100 mm, making it suitable for diverse environments.
