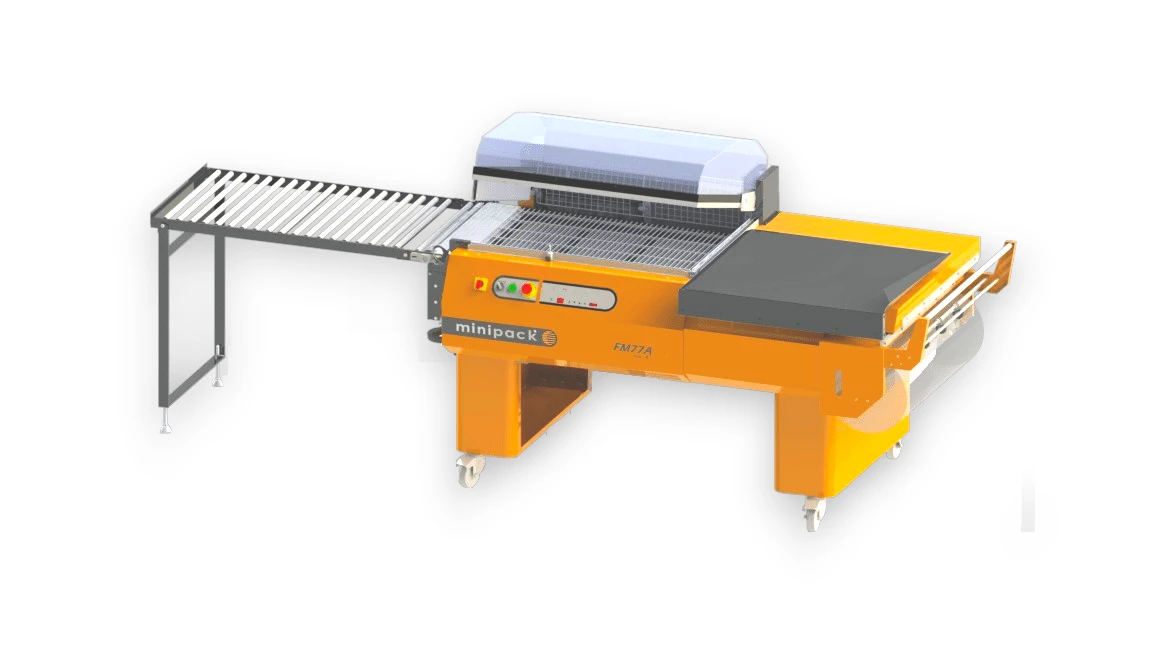

FM77A evo

This electrical power supply system includes several voltage options to accommodate different needs: 200V at 50/60Hz, 208V at 60Hz, 230V at 50Hz, and 400V at 50Hz. The maximum installed power varies with the voltage, reaching 6.0 kW for 200V, 7.9 kW for 208V, and 7.5 kW for both 230V and 400V configurations. The maximum current specifications are 20A for 200V, 24A for 208V, 21A for 230V, and 12A for 400V. This system can produce hourly outputs ranging from 0 to 400 units, with sealing bars measuring 840x590 mm. The machine accommodates maximum reel dimensions of ø300x800 mm and product dimensions of 800x500x200 mm. With a work surface height of 940 mm, the overall machine dimensions are 3140x1000x1480 mm when the hood is open and 3140x1000x1180 mm when closed. It weighs 286 kg net and 338 kg gross, featuring a striking RAL2004 peeled color.
