ECO MODULAR

Vinkelsvets

38688.00kr

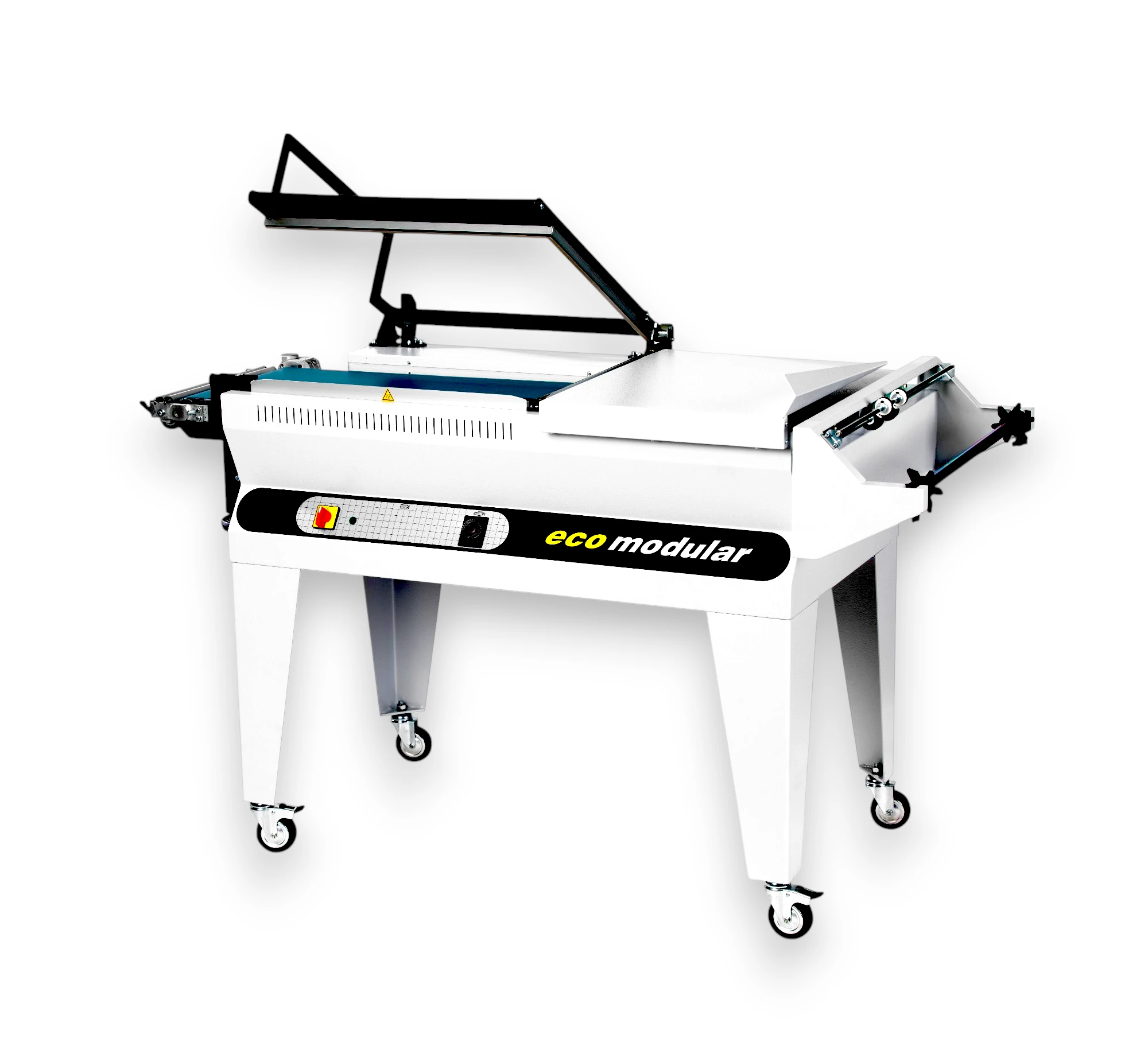

The machine operates on an electrical power supply of 230V, with a maximum installed power of 2.2 kW. It can produce an hourly output ranging from 0 to 550 p/h. The sealing bars are available in dimensions of 540 mm by 390 mm. It accommodates reels with a maximum diameter of 250 mm and strip widths up to 600 mm. The work surface is positioned at a height of 930 mm and the machine itself weighs 101 kg net and 130 kg gross. When the sealing frame is open, the machine dimensions are 1570 mm in length, 730 mm in width, and 1400 mm in height. When closed, the dimensions reduce to a height of 1100 mm while maintaining the same length and width. This compact design makes it suitable for various industrial applications, ensuring efficiency and convenience.
